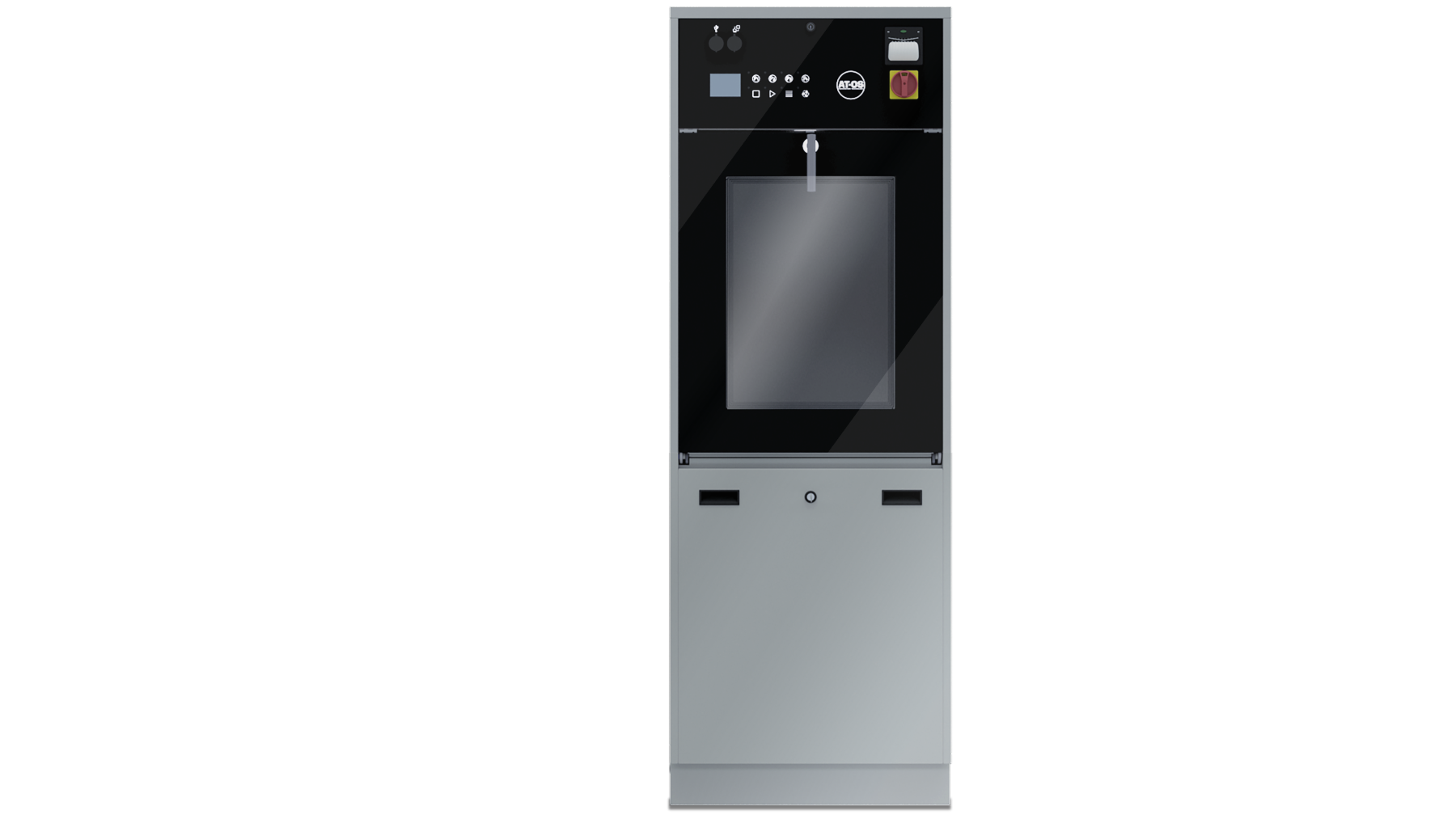

Column floor mounted with plinth, wall or floor drain trap connection. Thermal disinfection with built-in steam generator.
|H2O alimentation pressure||kPa||Min 70 (0.7 bar) Max 600 (6.0 bar)|
|Water Temperature||°C||Min 45 Max 60|
|Drain siphon||DN||100 (110mm)|
|Water consumption||l||Min 4- 4 Max 4-12|
|Work temperature||°c||Min 6 Max 40|
EN15883-1; EN15883-3;EN61010-2-040; EN60601-1-2; EN1717
Specifications AF2 Compact line :
Bedpan Washers with reduced dimensions for human waste containers such as: bedpans, urinals, support for disposable bedpans, commodes, kidney-shaped basins, bowls, urology bottles and other containers used in healthcare.
High Tech Features AF2 Compact line (Where available) :
After the disinfection phase cold air will be introduced by a fan in the washing chamber, to cool down the temperature, condense the steam and dry the containers. This appliance also avoid the aerosol effect for the operator and the thermodynamic contamination of the room.
Graphic display for an easy communication between machine and user. Top technology visualization to assure a detailed information for a user-friendly control of machine features.
The operator can open and close the door by pushing the foot pedal or activating the optical sensor on the touch panel.
The user can start the machine without removing his gloves by pushing the buttons with the elbow. This feature also supports the cross infection prevention.
System to automatically empty the water present at the end of each cycle from the water pump, the water storage tank and the pipes in order to ensure freedom from microbial contamination inside the machine. According to the standard EN ISO 15883-1 126.96.36.199 & 188.8.131.52
Automated system to disinfect the water used in the final rinse to cool down the washing temperature before being flushed to ensure freedom from microbial contamination according to the standard EN ISO 15883-1 184.108.40.206
